Soldering Guide for BennVenn LCD Mod Kits - Lynx Model 1
$USD 1.15
This laminated to-scale soldering guide makes it super simply to install your BennVenn IPS kit.

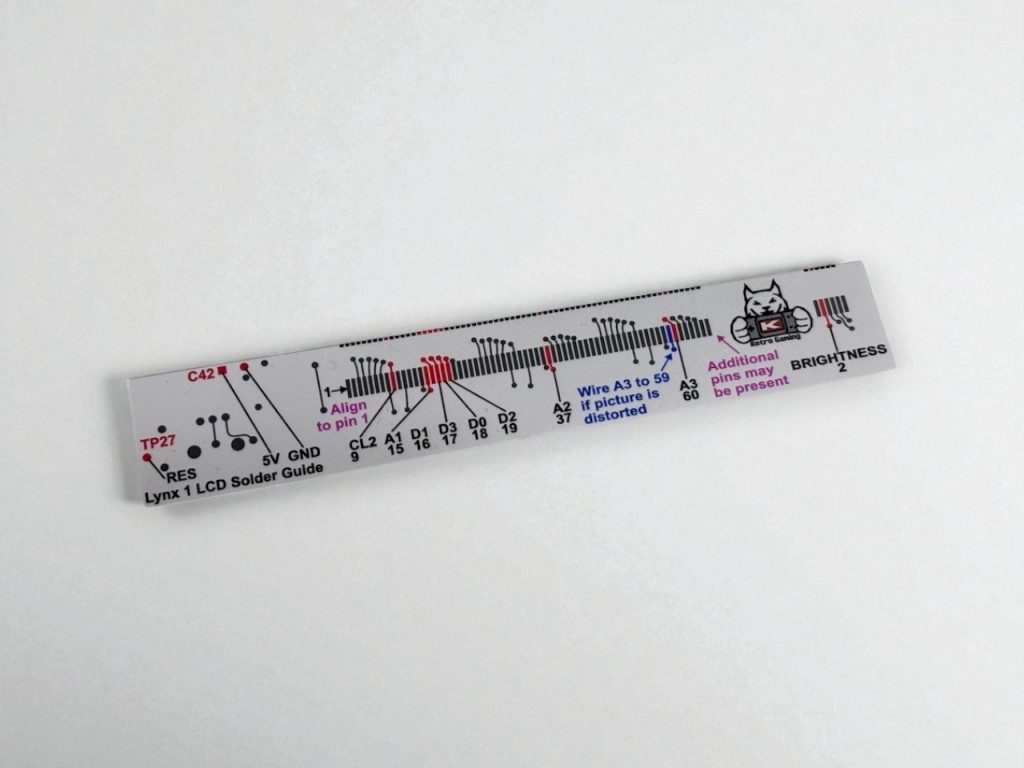

This is a laminated to-scale soldering guide for Lynx model 1 LCD kits.
It shows the connections for all of the signal and power wires and aligns to the Lynx 1 motherboard.
Align this guide to your Lynx 1 LCD pins to see where each of the mod wires needs to be soldered.
Package Contents
- 1x Soldering Guide
BVL1-GUIDE Laminated_Ruler
72 Items
Data sheet
- Compatibility
- BennVenn LCD mod kits for Atari Lynx model 1.
- HS Tariff Code
- 4911.91.2040
- Customs Description
- Laminated paper guide
- Country of Origin
- AU
