Region locking is the bane of any retro collector — that import cart you've been chasing is useless if your console won't run it. So this Sega Mega Drive Model 1 came to the bench for one job: making it happily play games from anywhere in the world, with a few quality-of-life perks along the way.
First Look

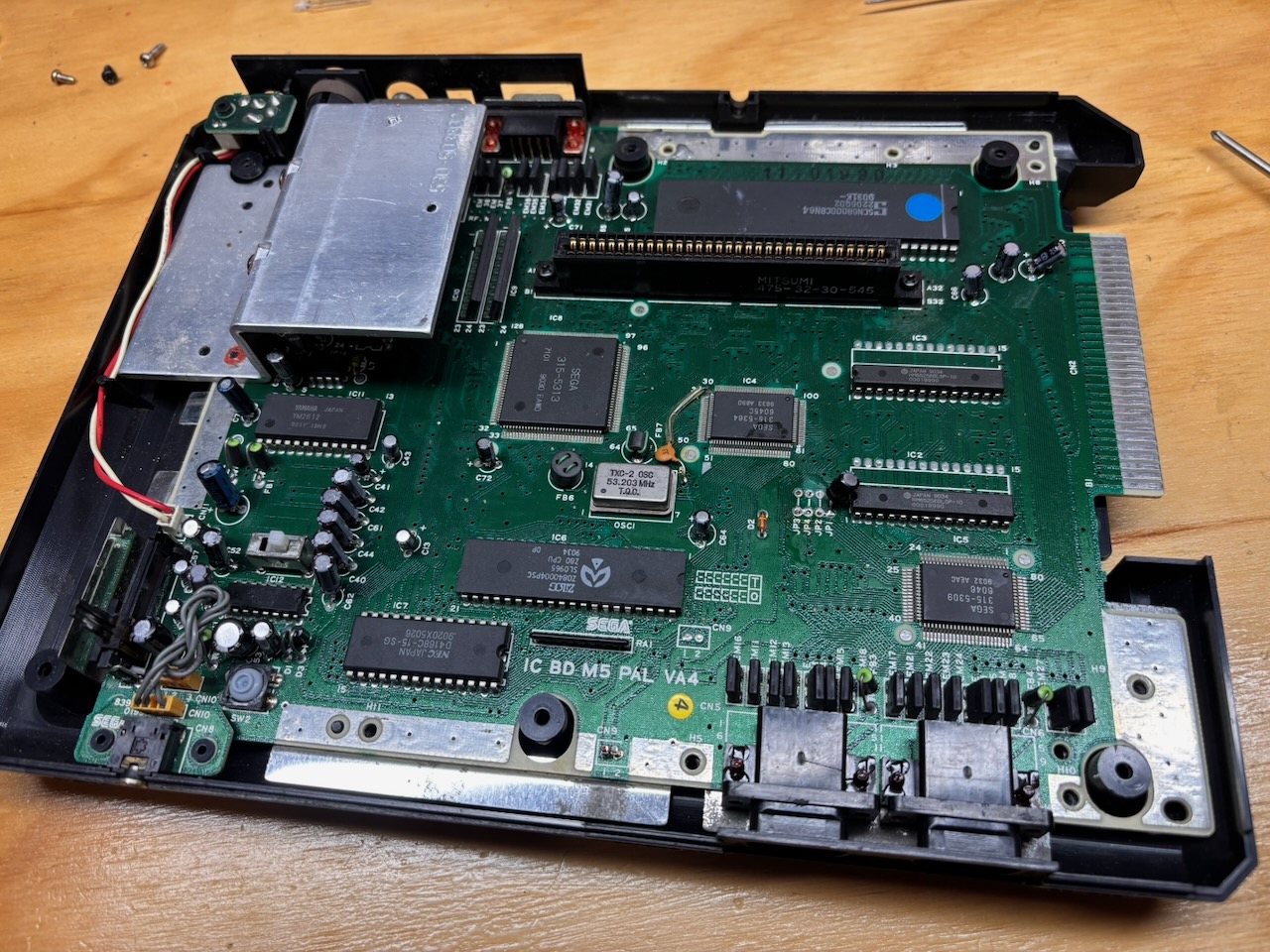

Off came the shell. A few honest scratches and a layer of grime, but otherwise in good nick. A previous owner had clearly been in here — not all the screws were originals, and several internal screws around the RF shield had gone walkabout. The shield itself was still sitting tight, though, and a capacitor inspection turned up no leaks. A clean bill of health.
The Mod
The star of the show was the Switchless Region, In-Game-Reset & Dual Frequency Oscillator Mod Kit from Consoles Unleashed. It bundles three upgrades:
- Switchless region switching — hop between regions straight from the controller, no physical switch.
- Dual frequency oscillator — proper 50/60Hz handling so games run at their intended speed.
- In-Game Reset (IGR) — reset from the pad without reaching for the console.

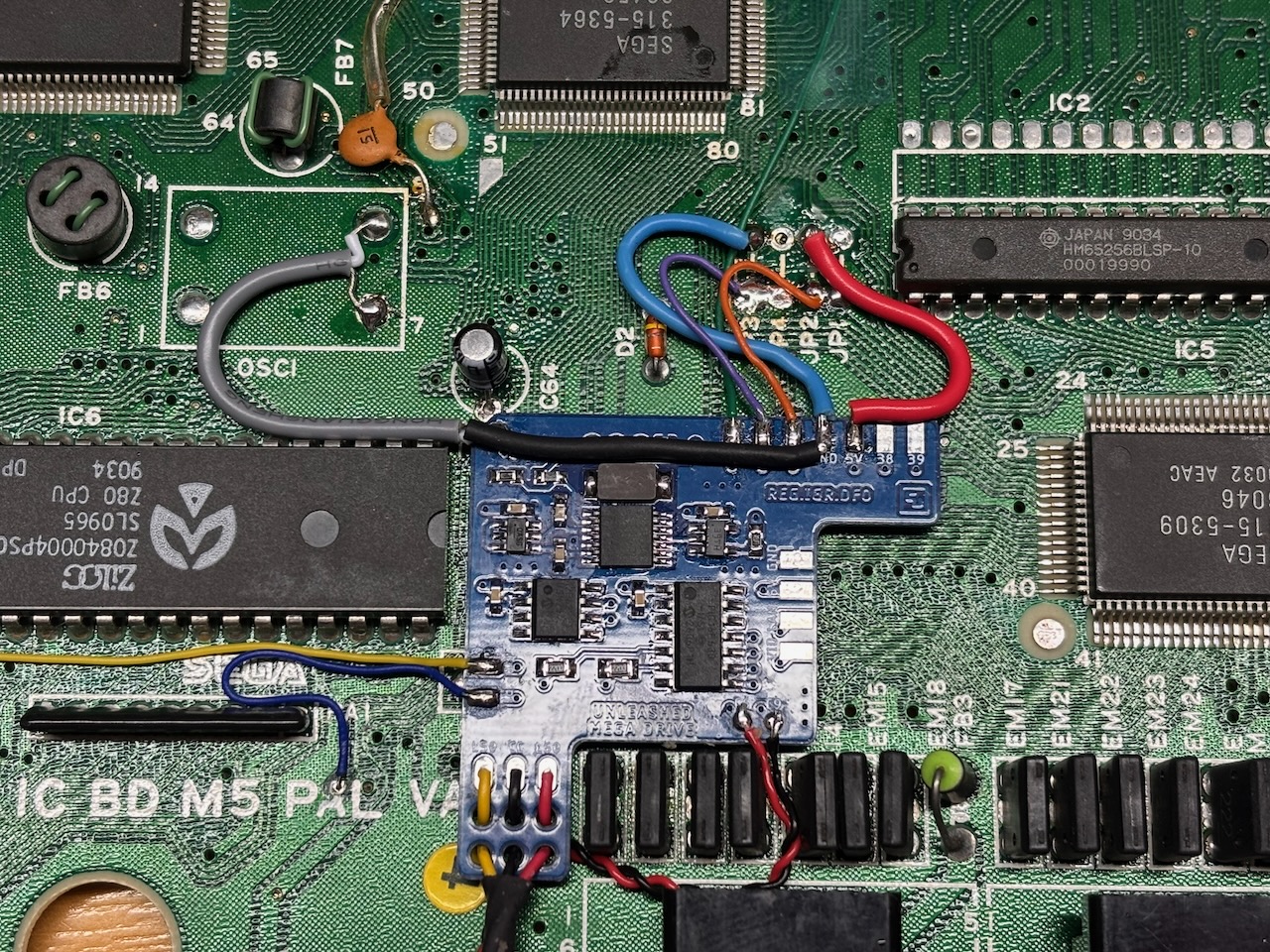

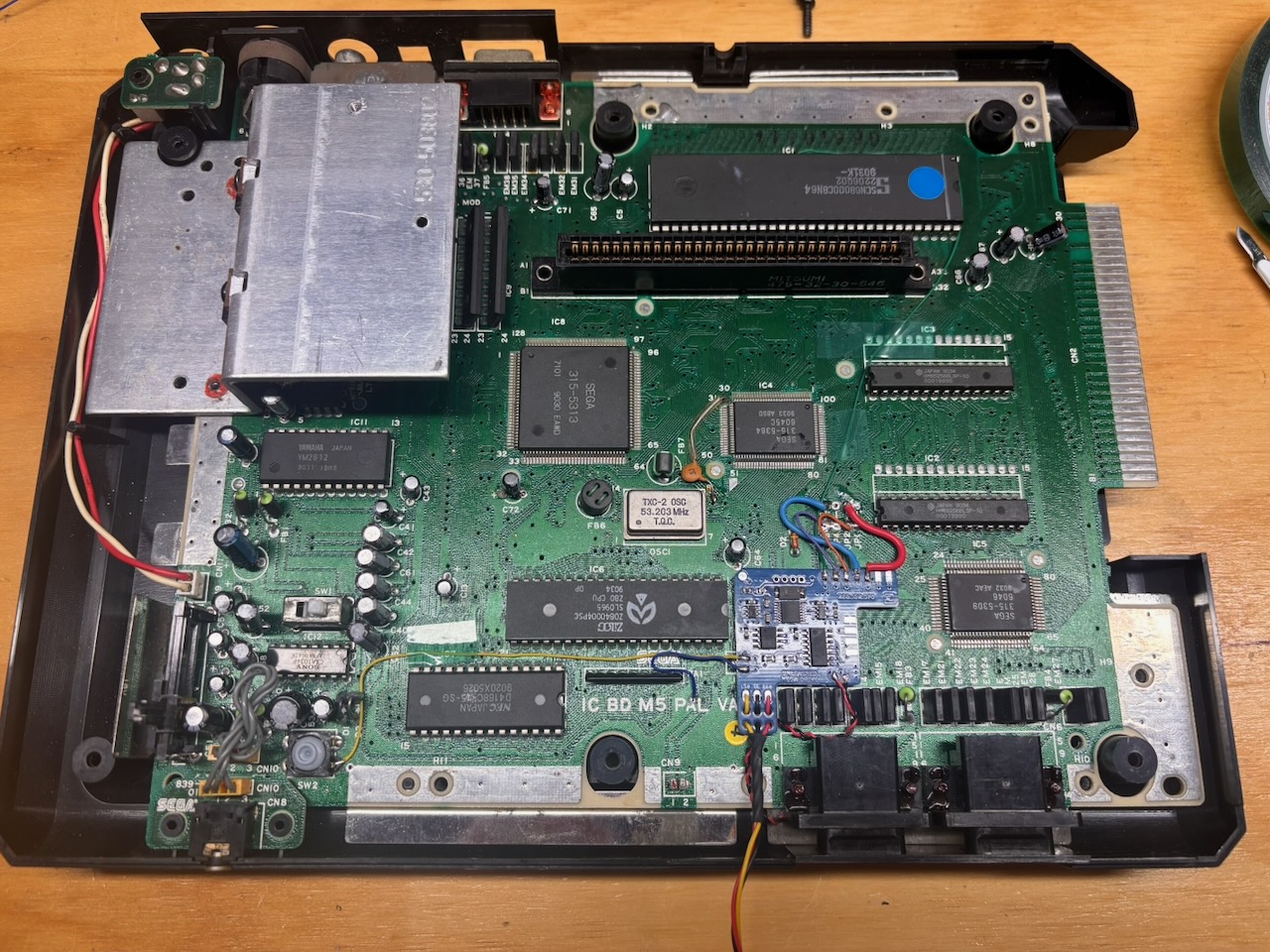

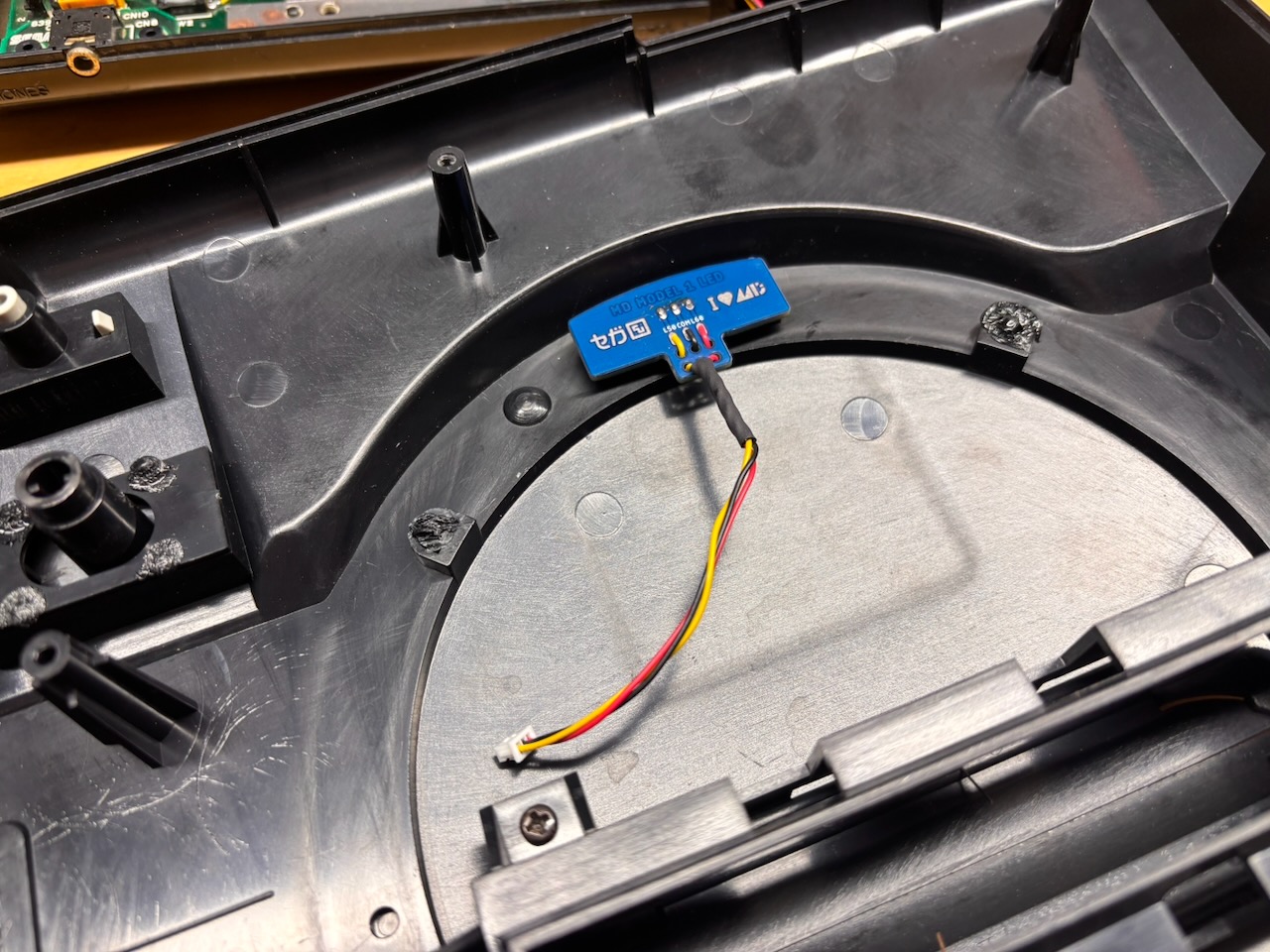

This wasn't plug-and-play. The install meant cutting a few traces, removing the original crystal oscillator and a capacitor, and cutting a hole in the shell for the tri-colour LED that replaces the original power light (it doubles as the region indicator — half the fun). The instructions were a little vague in spots but usable; experience helps here.
Cleanup & Test

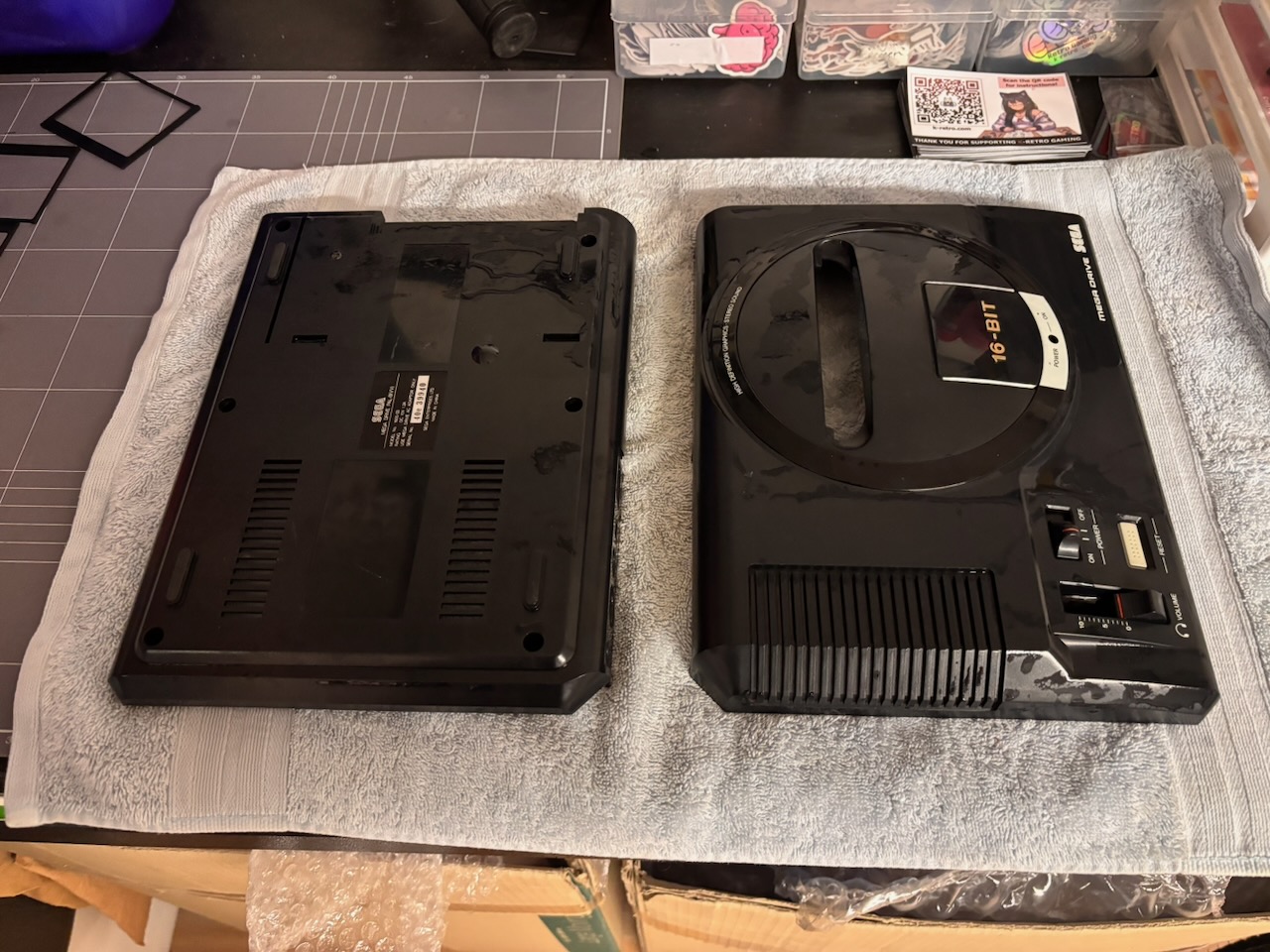

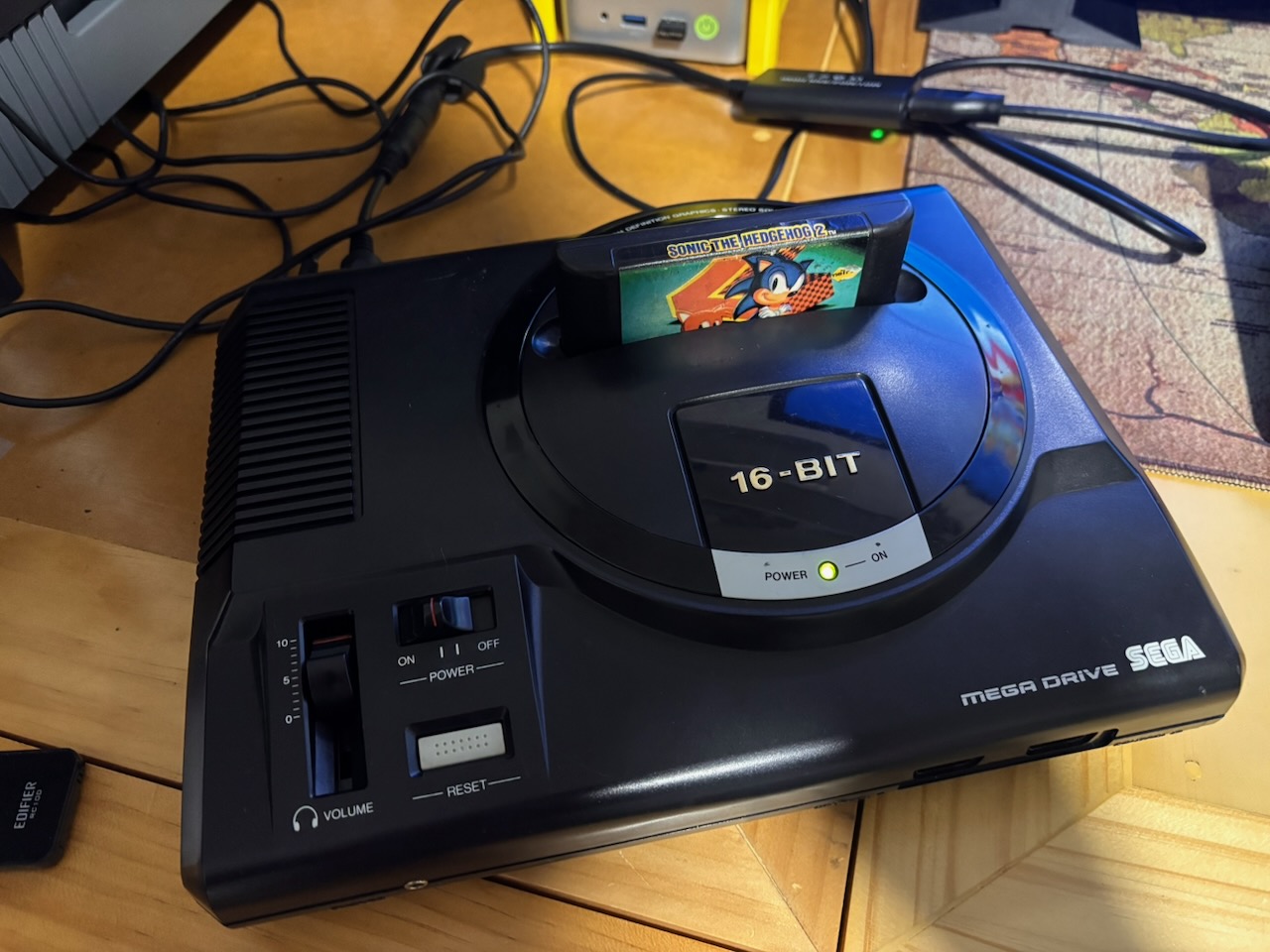

The shell took a trip through the ultrasonic cleaner, then a wipe-down to lift the last water marks. Reassembled and hooked up to the DC power supply, everything came up working — region switching, IGR, the lot. Now it'll run carts from any corner of the world.
