Replacement 7805 LM340T5 5V Voltage Regulator Kit
$USD 3.49
No tax
These are modern replacements for the 7805 5V voltage regulator, with thermal paste.
Get a 2% discount on your order (except shipping) when you pay via Bank Transfer. We will apply the discount when sending you bank payment details.
These LM340T5 voltage regulators are modern replacements for the 7805 series 5V voltage regulators. Comes in a pack of two, with thermal paste included.
Output Voltage: 5 V
Output Current: 1.5 A
Line Regulation: 12 mV
Load Regulation: 25 mV
Input Voltage MAX: 35 V
Input Voltage MIN: 7 V
Maximum Operating Temperature: +125 C
Minimum Operating Temperature: 0 C
Package / Case: TO-220-3
Mounting Style: Through Hole
Ripple Rejection: 80 dB
These regulators are compatible with the following retro game consoles -
- Atari 400
- Atari 800
- Atari 2600
- Atari 5200
- Atari 7800
- Commodore 64
- Emerson Arcadia
- Fairchild Channel F System II
- Intellivision INTV System III
- Magnavox Odyssey2
- Mattel Intellivision
- Mattel Intellivision v1
- MSX
- NEC PC Engine
- NEC Turbo Duo
- NEC TurboGrafx CD Dock
- NEC TurboGrafx-16
- Nintendo Famicom
- Nintendo NES
- Nintendo NES Front Loader
- Nintendo NES Top Loader
- Nintendo SNES
- Nintendo Super Famicom
- RCA Studio II
- Sega CD
- Sega CD v1
- Sega CD v2
- Sega Genesis / Megadrive
- Sega Master System
- Sega SG-1000
- Tandyvision 1
- Vectrex

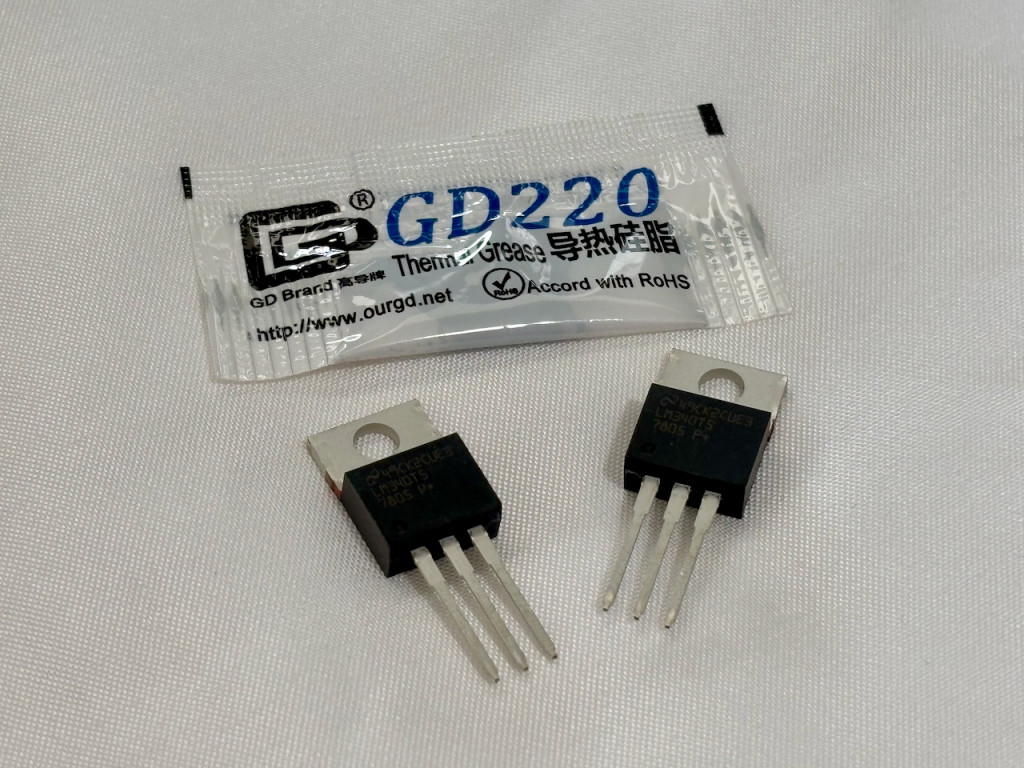

Package Contents
- 2x LM340T voltage regulators
- 1x Thermal paste sachet
LM340T5 PCB_Components_LM340_Transistors
11 Items
Data sheet
- Compatibility
- All Atari Lynx consoles.
These are modern replacements for the 7805 5V voltage regulator, with thermal paste.
